Automatic power factor correction for efficient electrical systems. Indocap Control Solutions is a trusted APFC Panel Manufacturer and Supplier .

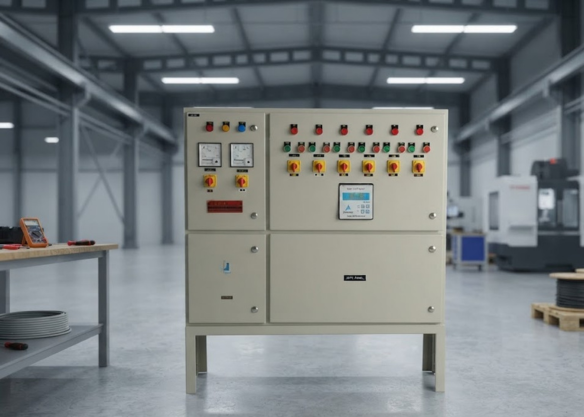

An Automatic Power Factor Correction (APFC) Panel is a reactive power compensation system that automatically maintains the required power factor by switching capacitor banks into or out of the electrical network.
As electrical loads change, the reactive power requirement also changes. The APFC controller continuously monitors the system and automatically selects the required capacitor stages to maintain the target power factor. This automatic operation helps provide accurate power factor control, efficient reactive power compensation, and improved electrical system performance.
Automatically monitors electrical load and connects or disconnects capacitor banks according to the reactive power requirement.
Equipped with a closed-loop, fast-response Multi Method Switching (MMS) algorithm for precise power factor control.
Responds to changing load conditions and adjusts capacitor stages according to the actual reactive power requirement.
Flexible switching options using Thyristor or Capacitor Duty Contactors, with MCB/HRC fuse protection and series reactors.
1.6 / 2.0 mm CRCA sheet metal with dust-proof gaskets, powder-coated finish, and heavy-duty hinges.
Components from Schneider, Siemens, L&T, Legrand, C&S, Eaton — as per your project requirements.
APFC panels are suitable for electrical systems where maintaining an improved power factor and managing reactive power is important.
| Supply Voltage | 3 Phase, 4 Wire, 440V AC, 50Hz with Earthing Provision |
| Rating | Up to 1200 kVAr |
| Rated Insulation | 1100V |
| Ambient Temperature | Up to 45°C |
| Degree of Protection | IP42, IP45, IP55 |
| System Protection | Under Voltage, Short Circuit |
| Testing | Megger Test, HV Test |
| Busbar | EC Grade Aluminium / Copper with Colour-Coded Heat Shrink Sleeves |
| Switchgear Options | Schneider, Siemens, L&T, Legrand, C&S, Eaton |
| Mounting | Base Frame, Stand, Wall Mounting |
| Cable Entry | Top / Bottom |
| Panel Construction | 1.6 / 2.0 mm CRCA Sheet Metal |
| Finish | 7-Tank Process Powder Coating |
| Standard Colours | RAL 7035 / RAL 7032 |
| Gasket | Dust-Proof Gasket |
| Gland Plate | 2.0 / 3.0 mm with Gasket |
Accurate reactive power compensation with automatic capacitor bank switching to maintain the desired power factor efficiently.
Our APFC panels are available up to 1200 kVAr, suitable for a wide range of industrial and commercial electrical systems.
Using CRCA sheet metal with powder-coated finish, dust-proof gaskets, and heavy-duty construction for long-term durability.
Choose from Schneider, Siemens, L&T, Legrand, C&S, Eaton — components that match your performance and budget needs.
We provide complete installation, commissioning, and after-sales support across Pune and surrounding industrial regions.
Competitive pricing without compromising on quality, ensuring maximum value for your investment in power quality improvement.
Indocap Control Solutions can provide customized APFC panels designed around your reactive power compensation and power factor correction requirements.
