Reliable fire pump control for fire protection systems. Indocap Control Solutions is a trusted Fire Fighting Panel Manufacturer and Supplier .

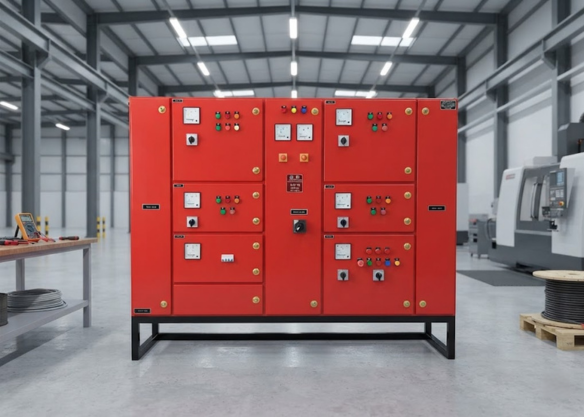

A Fire Fighting Panel is an electrical control panel used to operate and monitor fire protection pumps. It provides the necessary control and protection for fire pumps and helps ensure that the required water supply is available when the fire protection system demands it.
The panel can receive signals from devices such as pressure switches and activate the appropriate motor control system to start the fire pump. Our panels can be configured for automatic and manual operation and support different types of motor starters, including Star-Delta, DOL, and VFD starters.
Designed specifically for hydrant, sprinkler, jockey, and booster pump applications.
Automatic operation based on pressure switch signals, with manual override for testing and maintenance.
Earth fault, under voltage, overload, surge, single phasing, and short circuit protection.
Configured with Star-Delta, DOL, or VFD starters to match pump motor requirements.
1.6 / 2.0 mm CRCA sheet metal with dust-proof gaskets, powder-coated finish, and heavy-duty hinges.
Components from Schneider, Siemens, L&T, Legrand, C&S, Eaton — as per your project requirements.
Our fire fighting panels are suitable for various facilities requiring reliable fire pump control.
| Supply Voltage | 3 Phase, 4 Wire, 440V AC, 50Hz with Earthing Provision |
| Rated Current | 100A to 6300A |
| Rated Insulation | 1100V |
| Ambient Temperature | Up to 45°C |
| Degree of Protection | IP42, IP45, IP55 |
| System Protection | Earth Fault, Under Voltage, Overload, Surge Protection, Single Phasing, Short Circuit |
| Testing | Megger Test, HV Test |
| Busbar | EC Grade Aluminium / Copper with Colour-Coded Heat Shrink Sleeves |
| Switchgear Options | Schneider, Siemens, L&T, Legrand, C&S, Eaton |
| Mounting | Base Frame, Stand, Wall Mounting |
| Cable Entry | Top / Bottom |
| Panel Construction | 1.6 / 2.0 mm CRCA Sheet Metal |
| Finish | 7-Tank Process Powder Coating |
| Standard Colours | RAL 7035 / RAL 7032 |
| Gasket | Dust-Proof Gasket |
| Gland Plate | 2.0 / 3.0 mm with Gasket |
Designed specifically for fire protection systems, with pressure switch integration and reliable pump starting.
Flexible configurations with Star-Delta, DOL, or VFD starters to match pump motor and system requirements.
Using CRCA sheet metal with powder-coated finish, dust-proof gaskets, and heavy-duty construction for long-term durability.
Choose from Schneider, Siemens, L&T, Legrand, C&S, Eaton — components that match your performance and budget needs.
We provide complete installation, commissioning, and after-sales support across Pune and surrounding industrial regions.
Panels are designed to meet fire safety standards and provide dependable operation in critical situations.
Indocap Control Solutions can provide customized fire fighting panels designed around your fire pump and fire protection system requirements.
